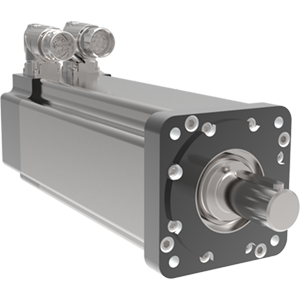

SLG Series Rotary Actuators

Gearmotors with Power Dense Motion Control

Industrial - Exlar

  • Continuous torque up to 530 Nm (4,696 lb-in).
  • Speeds up to 1250 rpm.
  • Gear reduction ratios up to 100:1.
  • Voltage ratings from 115-460 Vrms.
  • Compatible with most servo drives.
  • Class 1, Division 2 options available.
More Details

Overview

SLG Series Rotary Actuators

QUICK DATA
ModelsFrame Size mm (in)Gear Ratios X:1Max Output Torque (geared) Nm (lbf-in)
SLG06060 (2.36)
4, 5, 10, 16, 20, 25, 40, 50, 100
68.1 (603)
SLG07575 (2.95)
4, 5, 10
182.8 (1,618)
SLG09090 (3.54)
4, 5, 10, 16, 20, 25, 40, 50, 100
234.8 (2,078)
SLG115115 (4.53)
4, 5, 10, 16, 20, 25, 40, 50, 100
530.4 (4,696)

The UL Recognized Exlar SLG Series gearmotors offer you one of the highest power densities available in motion control. These gearmotors are available in four compact frame sizes: 60, 75, 90, and 115 mm with 1, 2, or 3 stack lengths. Single and double reductions are available in 4:1, 5:1, 10:1, 16:1, 25:1, 40:1, 50:1, and 100:1. The unique design of these gearmotors is especially valued in applications where weight or space is at a premium.


The Ultimate High Torque Solution

Many applications require high torque and low speed. A gear reducer in the SLG trades top-end speed for an increase in output torque. To further optimize the design, SLG motors can be wound to operate at higher than conventional servo motor speeds. The result is high power density in a compact space.


Optimizing Servo System Performance

Servo systems perform optimally when load inertia is similar to motor inertia. Gear reducers offer the perfect solution. Reflected inertia—the load inertia as seen by the control system—is reduced by the square of the gear ratio. For example, a 5:1 reduction ratio reduces the reflected inertia ratio by 25 times. The result is stable system operation and optimal machine performance.


Other Advantages

  • Flexible design suitable for a wide range of applications
  • Superior planetary gearheads offer high torque, low backlash and low maintenance
  • Eliminates clamps and pinions, as well as associated complications
  • Servo drive compatibility with feedback configurations for most amplifiers
  • Sealed anodized aluminum case manufactured to IP65 standard
  • Synthetic lubricants with EP additives, and Viton seals and O-rings for long life
  • Multiple frame sizes with standard metric mounting dimensions

Related Industries



QUICK DATA
Models:SLG060, SLG075, SLG090, SLG115
Frame Sizes:2.4, 3, 3.5, 4.5 in (60, 75, 90, 115 mm)
Gear Ratios:4:1, 5:1 10:1, 16:1, 20:1, 25:1, 40:1, 50:1, 100:1
Output Torque (geared):up to 4,696 lbf/in (530 Nm)
Output Speed:up to 1250 rpm
Standards/Ratings:UL Class 180H insulation, IP65S standard

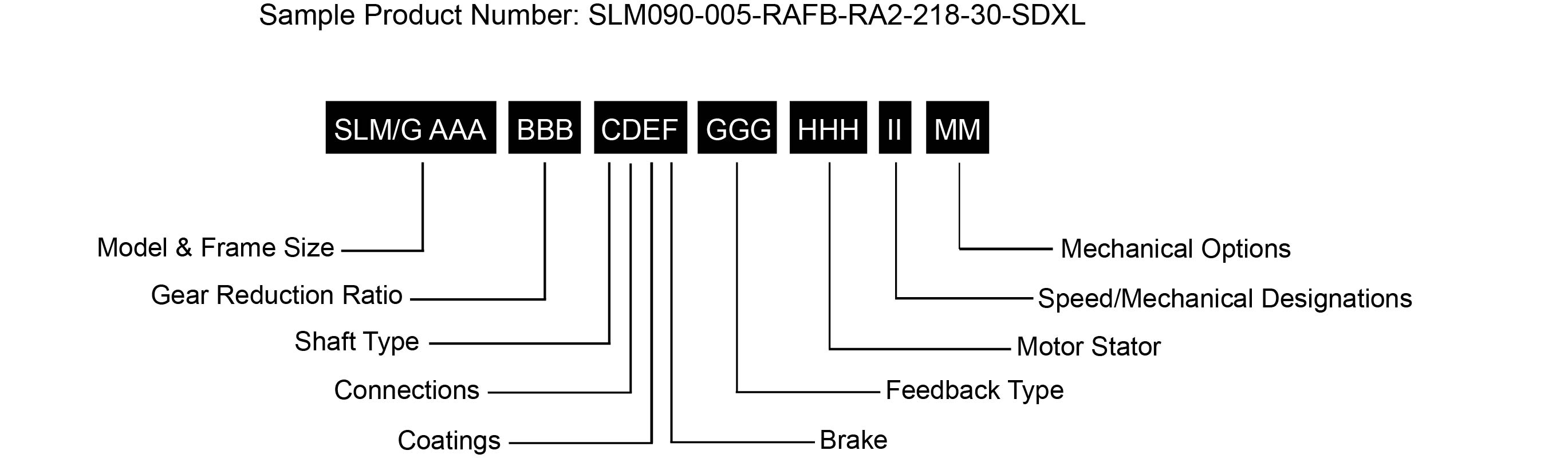

Ordering InformationArrow


G = Model Series
SLG  = SLG Series Servo Gear Motor
SLM = SLM Series Servo Motor (No Gear Reduction)

AAA = Frame Size
060 = 60 mm
075 = 75 mm
090 = 90 mm
115 = 115 mm
142 = 142 mm, (SLM only)
180 = 180 mm, (SLM only)

BBB = Gear Reduction Ratio
Blank = SLM
Single reduction ratio
004 = 4:1
005 = 5:1
010 = 10:1
Double reduction ratio (N/A on 075 mm)
016 = 16:1
020 = 20:1
025 = 25:1
040 = 40:1
050 = 50:1
100 = 100:1

C = Shaft Type
K = Keyed

D = Connections
I = Exlar standard M23 style
M = Manufacturer’s connector1

E = Coating Options
G = Anodized Aluminum (standard)

F = Brake Options
B = Brake
S = Standard no brake

GGG = Feedback Type
See catalog for detailed information.

HHH = Motor Stator – All 8 Pole2
115 Vrms

118 = 1 stack
218 = 2 stack
318 = 3 stack

230 Vrms
138 = 1 stack
238 = 2 stack
338 = 3 stack

400 Vrms
158 = 1 stack
258 = 2 stack
358 = 3 stack

460 Vrms
168 = 1 stack
268 = 2 stack
368 = 3 stack

II = Optional Speed and Mechanical Designations
24 = 2400 rpm, SLM142 & 180
30 = 3000 rpm, SLM/G115
40 = 4000 rpm, SLM075, SLM/G090
50 = 5000 rpm, SLM/G060


NOTES:
1. Available as described in Feedback Types.
2. See catalog for explanation of voltage, speed, stack and optimized stator options.

* Some options are not available with every configuration. For options or specials not listed above contact your local Exlar representative.

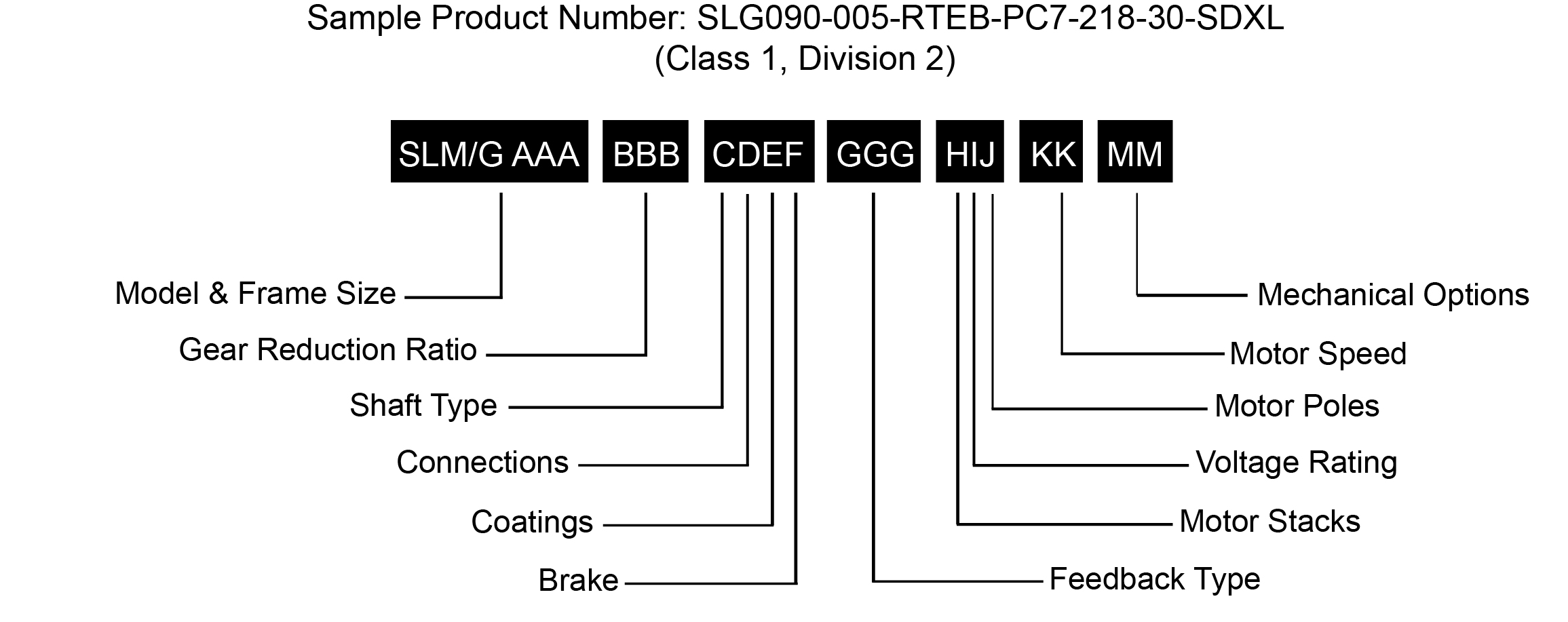

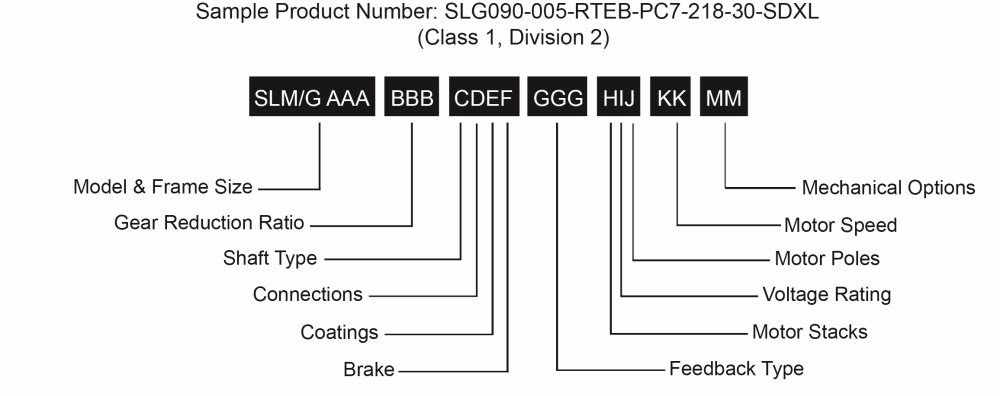

Class 1 Division 2 Ordering InformationArrow




SLM/G = Model Series
SLG = SLG Series Servo Gearmotor
SLM = SLM Series Servo Motor
(no gear reduction)

AAA = Motor Frame Size
075 = 75 mm
090 = 90 mm
115 = 115 mm
142 = 142 mm (SLM only)
180 = 180 mm (SLM only)

BBB = Gear Reduction Ratio
(leave blank for SLM Motor)
Single reduction ratio
004 = 4:1 Single Reduction
005 = 5:1 Single Reduction
010 = 10:1 Single Reduction

Double reduction ratio (N/A on 075 mm)
016 = 16:1 Double Reduction
020 = 20:1 Double Reduction
025 = 25:1 Double Reduction
040 = 40:1 Double Reduction
050 = 50:1 Double Reduction
100 = 100:1 Double Reduction

C = Shaft Type
K = Keyed
R = Smooth/round

D = Connections
T = Terminal box with NPT ports

E = Coating Options1
G = Exlar standard

F = Brake Options
B = Brake
S = Standard no brake

GGG = Feedback Type
See Engineered Product Catalog for details

H = Motor Stacks
1 = 1 stack magnets
2 = 2 stack magnets2
3 = 3 stack magnets2

I = Voltage Rating
1 = 115 Vrms
3 = 230 Vrms
5 = 400 Vrms
6 = 460 Vrms

J = Motor Poles
8 = 8 motor poles

KK = Motor Speed
24 = 2400 rpm, SLM142, SLM180
30 = 3000 rpm, SLM/G115
40 = 4000 rpm, SLM/G075, SLM/G090
50  = 5000 rpm, SLM/G060

MM= Mechanical Options
NI = Non-incendive construction required for Class 1, Division 2


NOTES:
1. These housing may indicate the need for special material main rods or mounting.
2. 115 Vrms is not available on a 2 or 3 stack SLM/G, or a 3 stack SLM/G090.

* Some options are not available with every configuration. For options or specials not listed above contact your local Exlar representative.

SLG Series Rotary Actuators OptionsOpen arrow

NI = Non-incendive option
Non-incendive option (required for Class I Division 2)

XM = Special Motor
Special Motor Options should be listed as XM and must be approved by Exlar.

XL = Special (Non-Standard) Lubrication
The XL option in the model number specifies some form of lubrication other than the standard provided by Exlar®, which is Mobilith SHC220. Special lubricants include other greases, such as JAX FG-2 food grade or Mobilgrease 28. Another non-standard option is oil cooling

XF = Special Feedback

Special Feedback Options should be listed as XF and must be approved by Exlar.

Product Specifications

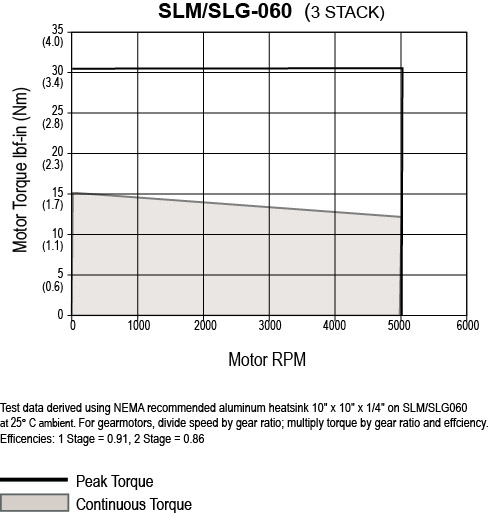

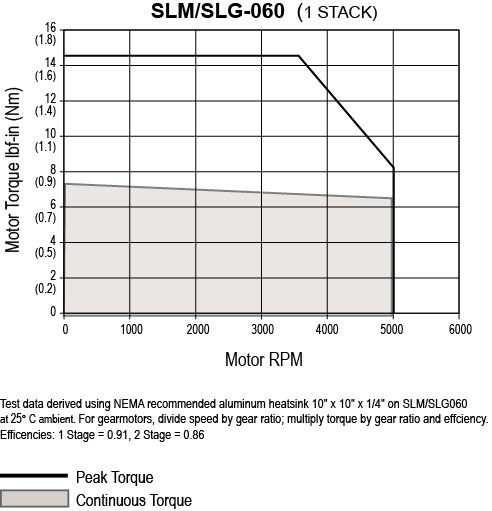

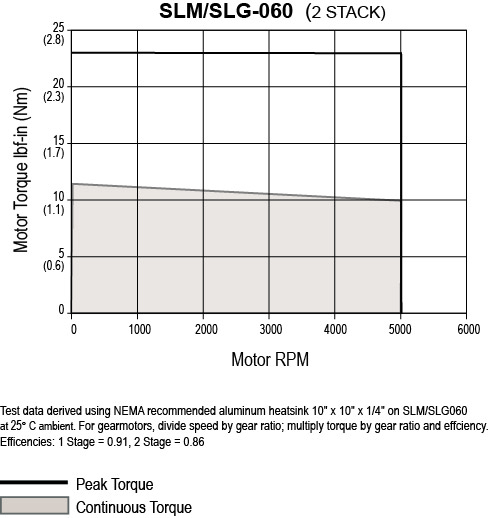

SLG060 Performance SpecificationsOpen arrow

SLM/G060 Electrical and Mechanical Specifications


Motor Stacks   118 138 158 168 218 238 258 268 318 338 358 368
Voltage Rating Vrms 115 230 400 460 115 230 400 460 115 230 400 460
Speed @ Bus Voltage rpm 5000 5000 5000 5000 5000 5000 5000 5000 5000 5000 5000 5000
Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 7.6 7.3 7 7 11.9 11.5 11 11.3 15 15.3 14.6 14.9
  Nm 0.86 0.83 0.79 0.79 1.34 1.3 1.25 1.28 1.7 1.73 1.65 1.69
Peak Motor Torque lbf-in 15.2 14.7 14 14 23.8 23 22.1 22.6 30 30.6 29.2 29.9
  Nm 1.72 1.66 1.58 1.58 2.69 2.6 2.49 2.55 3.39 3.46 3.3 3.38
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 2.5 5.2 7.5 9.5 2.5 5.2 8.6 10.1 2.5 5.3 8.8 10.1
  Nm/A 0.28 0.6 0.9 1.1 0.3 0.6 1 1.1 0.3 0.6 1 1.1
Continuous Current Rating A 3.4 1.6 1 0.8 5.4 2.5 1.4 1.2 6.6 3.2 1.9 1.6
Peak Current Rating A 6.9 3.1 2 1.6 10.8 4.9 2.9 2.5 13.2 6.5 3.7 3.3
O-PK Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 7.6 7.3 7 7 11.9 11.5 11 11.3 15 15.3 14.6 14.9
  Nm 0.86 0.83 0.79 0.79 1.34 1.3 1.25 1.28 1.7 1.73 1.65 1.69
Peak Motor Torque lbf-in 15.2 14.7 14 14 23.8 23 22.1 22.6 30 30.6 29.2 29.9
  Nm 1.72 1.66 1.58 1.58 2.69 2.6 2.49 2.55 3.39 3.46 3.3 3.38
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 1.7 3.7 5.3 6.7 1.7 3.7 6.1 7.2 1.8 3.7 6.2 7.2
  Nm/A 0.2 0.4 0.6 0.8 0.2 0.4 0.7 0.8 0.2 0.4 0.7 0.8
Continuous Current Rating A 4.9 2.2 1.5 1.2 7.6 3.5 2 1.8 9.4 4.6 2.6 2.3
Peak Current Rating A 9.7 4.5 2.9 2.3 15.2 7 4.1 3.5 18.7 9.2 5.3 4.7
Motor Data
Voltage Constant (Ke) (+/– 10% @ 25˚C) Vrms/Krpm 16.9 35.5 51.5 64.8 16.9 35.5 58.6 69.3 17.3 36 59.9 69.3
  Vpk/Krpm 23.9 50.2 72.8 91.7 23.9 50.2 82.9 98 24.5 50.9 84.8 98
Pole Configuration   8 8 8 8 8 8 8 8 8 8 8 8
Resistance (L-L) (+/– 5% @ 25˚C) Ohms 2.6 12.52 28.82 45.79 1.11 5.26 15.51 20.69 0.76 3.14 9.57 12.22
Inductance (L-L) (+/– 15%) mH 4.6 21.4 47.9 68.3 2.5 10.2 28.3 39.5 1.7 7.4 18.5 27.4
SLM Armature Inertia (+/– 5%) bf-in-sec^2 0.000237 0.000413 0.000589
  Kg-cm^2 0.268 0.466 0.665
Brake Inertia lbf-in-sec^2 0.00012
  Kg-cm^2 0.135
Brake Current @ 24 VDC A 0.33 0.33 0.33 0.33 0.33 0.33 0.33 0.33 0.33 0.33 0.33 0.33
Brake Holding Torque lbf-in 19 19 19 19 19 19 19 19 19 19 19 19
  Nm 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2
Brake Engage/Disengage Time ms 14/28 14/28 14/28 14/28 14/28 14/28 14/28 14/28 14/28 14/28 14/28 14/28
Mechanical Time Constant (tm) ms 2.2 2.38 2.6 2.61 1.62 1.74 1.89 1.8 1.5 1.45 1.59 1.52
Electrical Time Constant (te) ms 1.76 1.71 1.66 1.49 2.24 1.95 1.82 1.91 2.27 2.36 1.93 2.24
Friction Torque lbf-in (Nm) 0.27 (0.031) 0.27 (0.031) 0.27 (0.031) 0.27 (0.031) 0.34 (0.038) 0.34 (0.038) 0.34 (0.038) 0.34 (0.038) 0.38 (0.043) 0.38 (0.043) 0.38 (0.043) 0.38 (0.043)
Insulation Class   180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H)
Insulation System Volt Rating Vrms 460 460 460 460 460 460 460 460 460 460 460 460
Environmental Rating   IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S


For amplifiers using peak sinusoidal ratings, multiply RMS sinusoidal Kt by 0.707 and current by 1.414.

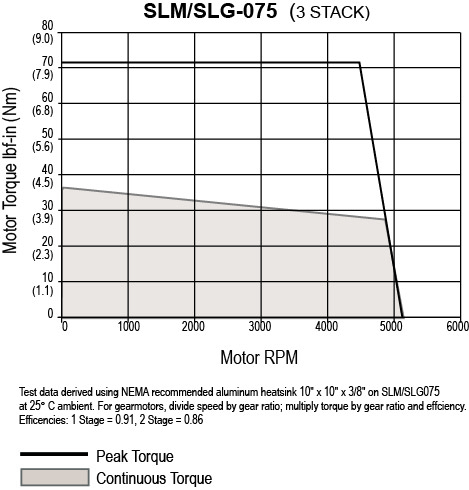

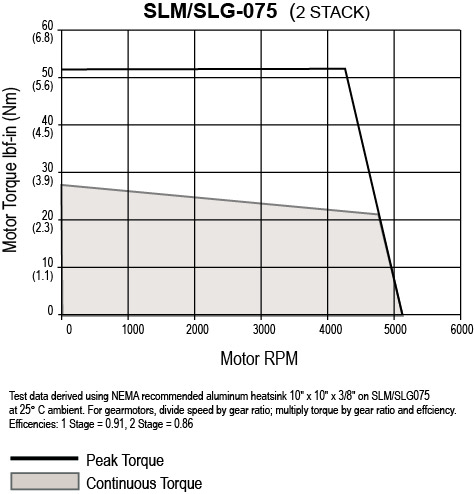

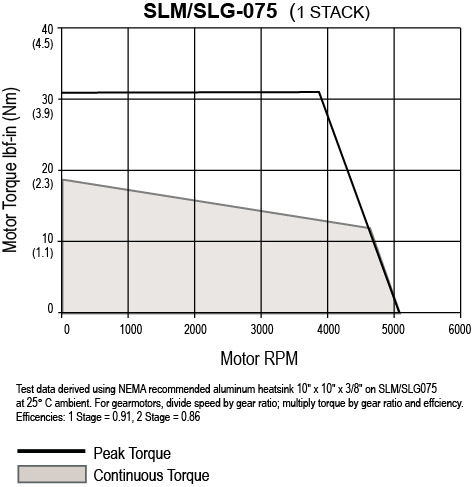

SLG075 Performance SpecificationsOpen arrow
Motor Stacks   118 138 158 168 218 238 258 268 318 338 358 368
Voltage Rating Vrms 115 230 400 460 115 230 400 460 115 230 400 460
Speed @ Bus Voltage rpm 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000
RMS Sinusoidal Commutation
Continuous Motor Torque lbf-in 16.6 16.4 16.3 16 26 26.4 26.2 26.4 37.9 35.9 37.3 36.4
  Nm 1.88 1.85 1.84 1.81 2.94 2.89 2.96 2.98 4.29 4.05 4.21 4.12
Peak Motor Torque lbf-in 33.3 32.8 32.6 32.1 52 52.7 52.4 52.8 75.9 71.7 74.6 72.9
  Nm 3.76 3.7 3.68 3.62 5.88 5.96 5.92 5.96 8.57 8.1 8.43 8.23
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 3.4 6.6 12.5 13.1 3.7 6.8 11.6 13.5 3.4 6.8 11.6 13.9
  Nm/A 0.4 0.7 1.4 1.5 0.4 0.8 1.3 1.5 0.4 0.8 1.3 1.6
Continuous Current Rating A 5.5 2.8 1.5 1.4 7.9 4.4 2.5 2.2 12.5 5.9 3.6 2.9
Peak Current Rating A 11 5.6 2.9 2.7 15.9 8.7 5.1 4.4 25.1 11.8 7.2 5.8
O-PeaK Sinusoidal Commutation
Continuous Motor Torque lbf-in 16.6 16.4 16.3 16 26 26.4 26.2 26.4 37.9 35.9 37.3 36.4
  Nm 1.88 1.85 1.84 1.81 2.94 2.98 2.96 2.98 4.29 4.05 4.21 4.12
Peak Motor Torque lbf-in 33.3 32.8 32.6 32.1 52 52.7 52.4 52.8 75.9 71.7 74.6 72.9
  Nm 3.76 3.7 3.68 3.62 5.88 5.96 5.92 5.96 8.57 8.1 8.43 8.23
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 2.4 4.6 8.8 9.3 2.6 4.8 8.2 9.6 2.4 4.8 8.2 9.9
  Nm/A 0.3 0.5 1 1 0.3 0.5 0.9 1.1 0.3 0.5 0.9 1.1
Continuous Current Rating A 7.8 4 2.1 1.9 11.2 6.2 3.6 3.1 17.7 8.4 5.1 4.1
Peak Current Rating A 15.6 7.9 4.1 3.9 22.4 12.3 7.2 6.2 35.5 16.8 10.1 8.3
Motor stator Data
Voltage Constant (Ke) (+/– 10% @ 25˚C) Vrms/Krpm 23.1 44.7 85.2 89.5 25 46.2 78.9 92.4 23.1 46.2 79.4 95.3
  Vpk/Krpm 32.7 63.3 120.4 126.5 35.4 65.3 111.6 130.6 32.7 65.3 112.3 134.7
Pole Configuration   8 8 8 8 8 8 8 8 8 8 8 8
Resistance (L-L)(+/– 5% @ 25˚C) Ohms 1.66 6.42 23.49 26.84 0.83 2.75 8.15 11.01 0.4 1.77 4.83 7.29
Inductance (L-L)(+/– 15%) mH 4.6 17.3 62.6 69.2 2.6 8.8 25.7 35.2 1.4 5.8 17 24.5
SLM Armature Inertia lbf-in-sec^2 (+/– 5%) 0.00054 0.00097 0.0014
  Kg-cm^2 0.616 1.1 1.583
Brake Inertia lbf-in-sec^2 0.000159
  Kg-cm^2 0.18
Brake Current @ 25 VDC A 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Brake Holding Torque lbf-in 40 40 40 40 40 40 40 40 40 40 40 40
  Nm 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5
Brake Engage/Disengage Time ms 9/35 9/35 9/35 9/35 9/35 9/35 9/35 9/35 9/35 9/35 9/35 9/35
Mechanical Time Constant (tm) ms 1.71 1.77 1.79 1.85 1.31 1.27 1.29 1.27 1.05 1.18 1.09 1.14
Electrical Time Constant (te) ms 2.78 2.69 2.67 2.58 3.11 3.19 3.15 3.2 3.65 3.26 3.53 3.37
Friction Torque lbf-in (Nm) 0.51 (0.058) 0.51 (0.058) 0.51 (0.058) 0.51 (0.058) 0.67 (0.075) 0.67 (0.075) 0.67 (0.075) 0.67 (0.075) 0.90 (0.101) 0.90 (0.101) 0.90 (0.101) 0.90 (0.101)
Insulation Class   180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H)
Insulation System Volt Rating Vrms 460 460 460 460 460 460 460 460 460 460 460 460
Environmental Rating   IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S


For amplifiers using peak sinusoidal ratings, multiply RMS sinusoidal Kt by 0.707 and current by 1.414.

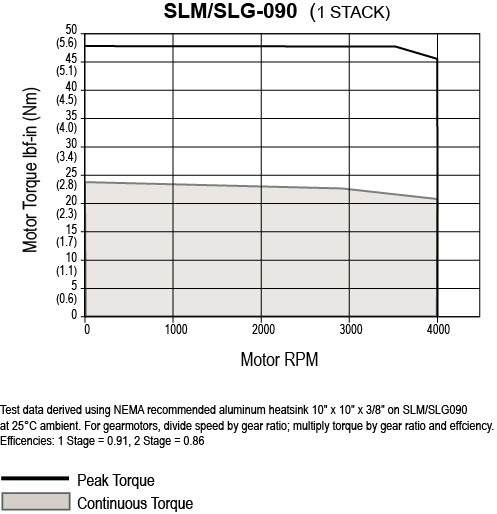

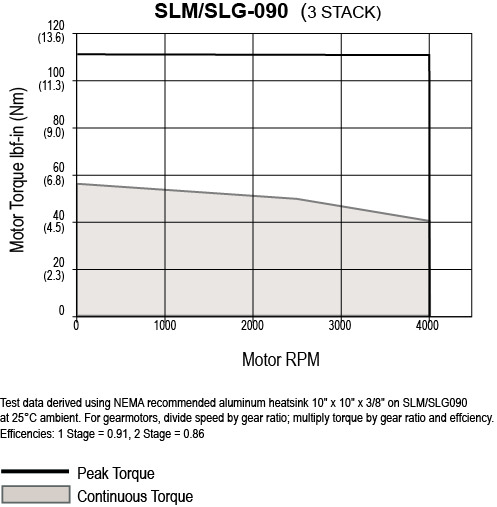

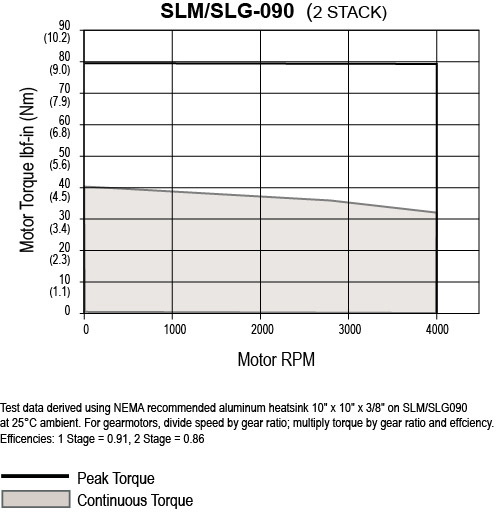

SLG090 Performance SpecificationsOpen arrow

SLM/G090 Electrical and Mechanical Specifications

Motor Stacks   118 138 158 168 218 238 258 268 338 358 368
Voltage Rating Vrms 115 230 400 460 115 230 400 460 230 400 460
Speed @ Bus Voltage rpm 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000
Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 23.8 24 23.7 24.7 39.6 40 39.5 39.9 55.7 55.4 55.7
  Nm 2.68 2.71 2.67 2.79 4.47 4.52 4.46 4.51 6.3 6.26 6.3
Peak Motor Torque lbf-in 47.5 48 47.3 49.4 79.1 80 79 79.9 111.5 110.9 111.5
  Nm 5.37 5.42 5.35 5.58 8.94 9.04 8.93 9.02 12.59 12.52 12.59
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 3.2 6.6 11.6 13.2 3.2 6.6 11.6 13.2 6.6 11.6 13.1
  Nm/A 0.37 0.7 1.3 1.5 0.4 0.7 1.3 1.5 0.7 1.3 1.5
Continuous Current Rating A 8.2 4 2.3 2.1 13.6 6.8 3.8 3.4 9.5 5.3 4.8
Peak Current Rating A 16.4 8.1 4.6 4.2 27.3 13.5 7.6 6.7 19 10.7 9.5
O-PK Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 23.8 24 23.7 24.7 39.6 40 39.5 39.9 55.7 55.4 55.7
  Nm 2.68 2.71 2.67 2.79 4.47 4.52 4.46 4.51 6.3 6.26 6.3
Peak Motor Torque lbf-in 47.5 48 47.3 49.4 79.1 80 79 79.9 115.5 110.9 111.5
  Nm 5.37 5.42 5.35 5.58 8.94 9.04 8.93 9.02 12.59 12.52 12.59
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 2.3 4.7 8.2 9.4 2.3 4.7 8.2 9.4 4.6 8.2 9.3
  Nm/A 0.26 0.5 0.9 1.1 0.3 0.5 0.9 1.1 0.5 0.9 1
Continuous Current Rating A 11.6 5.7 3.2 2.9 19.3 9.5 5.4 4.8 13.4 7.5 6.7
Peak Current Rating A 23.2 11.4 6.5 5.9 38.6 19.1 10.8 9.5 26.9 15.1 13.4
Motor Data
Voltage Constant (Ke) (+/– 10% @ 25˚C) Vrms/Krpm 22.1 45.2 78.9 90.4 22.1 45.2 78.9 90.4 44.7 79.4 89.5
  Vpk/Krpm 31.3 64 111.6 127.9 31.3 64 111.6 127.9 63.3 112.3 126.5
Pole Configuration   8 8 8 8 8 8 8 8 8 8 8
Resistance (L-L)(+/– 5% @ 25˚C) Ohms 0.75 3.06 9.57 11.55 0.3 1.21 3.78 4.86 0.69 2.19 2.75
Inductance (L-L)(+/– 15%) mH 6.1 25.6 78 88.6 2.9 10.5 37.2 43.1 6.6 24.7 31.4
SLM Armature Inertia (+/– 5%) lbf-in-sec^2 0.00054 0.00097 0.0014
  Kg-cm2 0.609 1.09 1.58
Brake Inertia lbf-in-sec^2 0.00096
  Kg-cm^2 1.08
Brake Current @ 24 VDC A 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67
Brake Holding Torque lbf-in (Nm) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11) 97 (11)
Brake Engage/Disengage Time ms 20/29 20/29 20/29 20/29 20/29 20/29 20/29 20/29 20/29 20/29 20/29
Mechanical Time Constant (tm) ms 0.83 0.82 0.84 0.77 0.59 0.58 0.59 0.58 0.48 0.49 0.48
Electrical Time Constant (te) ms 8.21 7.31 8.14 7.67 9.88 8.66 9.85 8.88 9.57 11.3 11.43
Friction Torque lbf-in (Nm) 0.68 (0.077) 0.68 (0.077) 0.68 (0.077) 0.68 (0.077) 0.85 (0.095) 0.85 (0.095) 0.85 (0.095) 0.85 (0.095) 1.06 (0.119) 1.06 (0.119) 1.06 (0.119)
Insulation Class   180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H)
Insulation System Volt Rating Vrms 460 460 460 460 460 460 460 460 460 460 460
Environmental Rating   IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S


For amplifiers using peak sinusoidal ratings, multiply RMS sinusoidal Kt by 0.707 and current by 1.414.

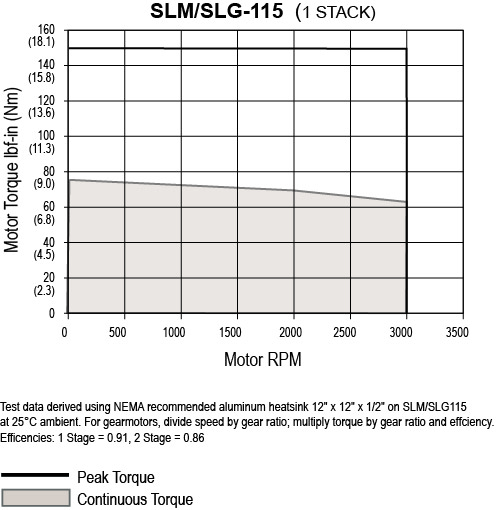

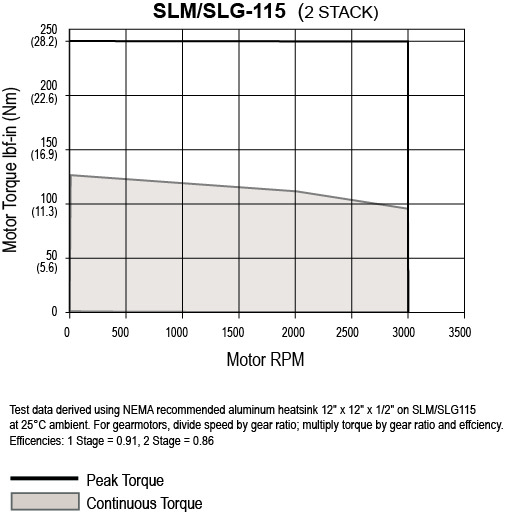

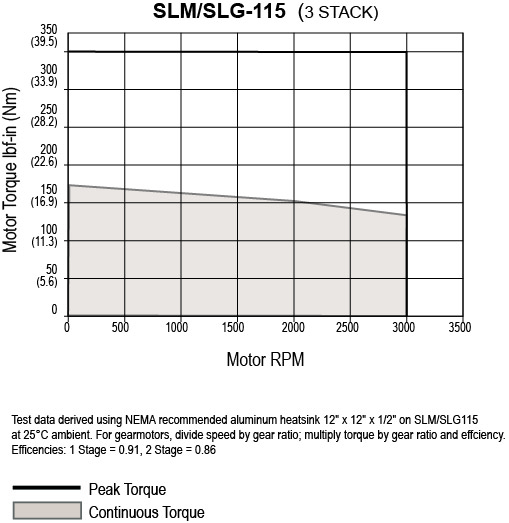

SLG115 Performance SpecificationsOpen arrow

SLM/G115 Electrical and Mechanical Specifications

Motor Stacks   118 138 158 168 238 258 268 338 358 368
Voltage Rating Vrms 115 230 400 460 230 400 460 230 400 460
Speed @ Bus Voltage rpm 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000
Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 74.1 74.1 74.3 74.1 123.6 121.4 123.8 172.3 168.9 176.9
  Nm 8.37 8.37 8.39 8.37 13.96 13.72 13.96 19.46 19.09 19.98
Peak Motor Torque lbf-in 148.2 148.2 148.6 148.1 247.2 242.8 247.2 344.5 337.8 353.7
  Nm 16.74 16.74 16.79 16.74 27.93 27.43 27.93 38.93 38.17 39.96
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 4.3 8.7 15.7 17.3 8.7 15.8 17.3 8.5 15.8 17.5
  Nm/A 0.49 1 1.8 2 1 1.8 2 1 1.8 2
Continuous Current Rating A 19.1 9.5 5.3 4.8 15.9 8.6 8 22.7 11.9 11.3
Peak Current Rating A 38.2 19.1 10.6 9.5 31.8 17.1 15.9 45.4 23.8 22.5
O-PK Sinusoidal Commutation Data
Continuous Motor Torque lbf-in 74.1 74.1 74.3 74.1 123.6 121.4 123.6 172.3 168.9 176.9
  Nm 8.37 8.37 8.39 8.37 13.96 13.72 13.96 19.46 19.09 19.98
Peak Motor Torque lbf-in 148.2 148.2 148.6 148.1 247.2 242.8 247.2 344.5 337.8 353.7
  Nm 16.74 16.74 16.79 16.74 27.93 27.43 27.93 38.93 38.17 39.96
Torque Constant (Kt) (+/– 10% @ 25˚C) lbf-in/A 3.1 6.1 11.1 12.3 6.1 11.2 12.3 6 11.2 12.4
  (Nm/A) 0.35 0.7 1.3 1.4 0.7 1.3 1.4 0.7 1.3 1.4
Continuous Current Rating A 27 13.5 7.5 6.7 22.5 12.1 11.3 32.1 16.9 15.9
Peak Current Rating A 54 27 15 13.5 45 24.2 22.5 64.2 33.7 31.9
Motor Data
Voltage Constant (Ke) (+/– 10% @ 25˚C) Vrms/Krpm 29.6 59.2 106.9 118.5 59.2 108.2 118.5 58 108.2 119.8
  Vpk/Krpm 41.9 83.8 151.2 167.6 83.8 153 167.6 82 153 169.4
Pole Configuration   8 8 8 8 8 8 8 8 8 8
Resistance (L-L) (+/– 5% @ 25˚C) Ohms 0.2 0.8 2.6 3.21 0.34 1.17 1.35 0.2 0.72 0.81
Inductance (L-L) (+/– 15%) mH 3.3 13 42.4 52.1 5.9 21.1 25.3 4 13.1 17.1
SLM Armature Inertia (+/– 5%) lbf-in-sec^2 0.00342 0.0062 0.00899
  Kg-cm^2 3.86 7 10.14
Brake Inertia lbf-in-sec^2 0.00327
  Kg-cm^2 3.7
Brake Current @ 24 VDC A 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75 0.75
Brake Holding Torque lbf-in (Nm) 195 (22) 195 (22) 195 (22) 195 (22) 195 (22) 195 (22) 195 (22) 195 (22) 195 (22) 195 (22)
Brake Engage/Disengage Time ms 25/50 25/50 25/50 25/50 25/50 25/50 25/50 25/50 25/50 25/50
Mechanical Time Constant (tm) ms 0.8 0.8 0.79 0.8 0.61 0.63 0.61 0.54 0.56 0.51
Electrical Time Constant (te) ms 16.26 16.26 16.34 16.25 17.6 18.06 18.72 18.5 18.14 21.16
Friction Torque lbf-in (Nm) 1.43 (0.16) 1.43 (0.16) 1.43 (0.16) 1.43 (0.16) 1.81 (0.204) 1.81 (0.204) 1.81 (0.204) 2.32 (0.262) 2.32 (0.262) 2.32 (0.262)
Insulation Class   180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H) 180 (H)
Insulation System Volt Rating Vrms 460 460 180 (H) 460 460 460 460 460 460 460
Environmental Rating   IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S IP65S


For amplifiers using peak sinusoidal ratings, multiply RMS sinusoidal Kt by 0.707 and current by 1.414.

Product Literature

Catalogs, Brochures, and Success Stories

Industrial - Exlar, Brochures/Catalogs
Industrial - Exlar, Brochures/Catalogs
Industrial - Exlar, Brochures/Catalogs
Show Resources

Actuator Technical Data

Manuals and Technical Tips

Industrial - Exlar, Electric Actuation Articles
T-LAM stators provide higher slot fill, >20-30% more slot fill in equal size traditional brushless motor stators which directly results in higher current rating, HP and torque.
Industrial - Exlar, Actuator Technical Tips
Industrial - Exlar, Actuator Technical Tips
Industrial - Exlar, Actuator Technical Tips
Industrial - Exlar, Actuator Technical Tips
Industrial - Exlar, Actuator Technical Tips
Siemens - ‘M’ Manufacturers Connector, Cable & Wiring Information
Industrial - Exlar, Actuator Technical Tips
Industrial - Exlar, Electric Actuation Articles
Fortunately, because most servo applications only intermittently demand maximum continuous-torque motor output, a smaller motor that occasionally outputs peak torque is usually sufficient.
Industrial - Exlar, Actuator Technical Tips
Industrial - Exlar, Actuator Technical Tips
Show Resources

Videos

Industrial - Exlar, Product Videos
Exlar® actuators from Curtiss-Wright are an industry leader in electric actuation. Our research, pride, and creativity shine in this short video as we highlight our top product lines.
Show Resources

Find more resources in our InfoCenter.

This site uses cookies to improve our service, you can find out more here - for the best web experience please accept cookies

x
