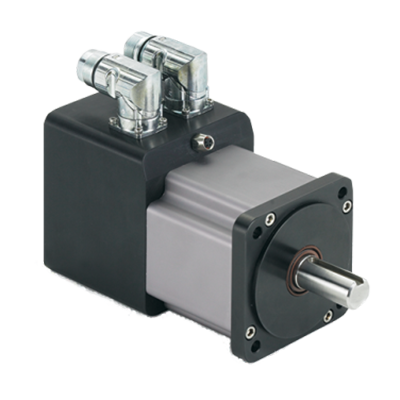

TRITEX I ROTARY

Fully Integrated Drive/Motor

Industrial - Exlar

The Tritex I Rotary actuator is an Obsolete Product, No Longer Available. Need a comparable replacement, try our Tritex II AC or DC Rotary actuators!

More Details

Overview

TRITEX I ROTARY

Three Technologies – One Actuator.

Exlar’s TritexTM Series actuators combine three technologies to deliver for the first time a truly simple and low cost electric alternative for fluid power actuators. Tritex actuators with built-in mechanical converters also replace electric drive systems employing ball screw or gear reducer mechanisms for a complete actuation solution.

Tritex actuators represent an all-electric actuator solution for moving and/or positioning mechanical devices in a large variety of industrial or military grade applications. Tritex actuators eliminate the need for pneumatic and hydraulic cylinders while improving position performance, reducing cycle times and eliminating the maintenance associated with fluid power devices. Ball screw mechanisms, and separately mounted gear reducers are also a thing of the past because rotary to linear converters or mechanical reducers are designed in.


Less is more

The Tritex Series of electric actuators combine a brushless servo motor, servo amplifier and position controller in a single industrial grade enclosure. This eliminates both the external servo amplifier and the expensive and failure prone cables associated with a typical servo system. Component selection, design and installation are completely eliminated. Troubleshooting and debugging of individual components; gear reducers, rotary-to-linear converter mechanisms and the complex wiring layout typical of such a system are gone. The panel space for a separately mounted amplifier and installation of that amplifier are no longer necessary.


Rotary Applications

Tritex rotary motors and gearmotors provide high response and precise control of a rotatable shaft similar to that found in any electric motor. The difference is that with Tritex you can program (via your PC) the rotational speed and position of the output shaft in response to external commands. For example, the motor can be commanded to rotate at a controlled velocity and precisely stop at a pre-programmed position upon receiving a command to do so. You can also program the unit to run at a preset velocity until a switch input is received or a pre-programmed torque level is produced (against a load). Alternatively, the rotary Tritex can be set up to follow an analog signal, either voltage or current, representing torque, velocity, or position.

Signals for initiating the preprogrammed velocity and position commands come from optically isolated inputs or directly via the Modbus serial communication channel provided on each Tritex unit. Likewise, isolated output commands of the status and events allow precise coordination with your system controls or machine operator.


Optional Internal Gear Reducer

If the application requires greater torque and less speed than available with the base unit, the Tritex is available with an integral servo grade planetary gear reducer. Gear ratios of 4:1 to 100:1 allow the power of Tritex to be applied over a broad range of torque requirements.


Product Features

  • 90 mm frame size
  • Up to 42 lbf-in (4.7 Nm) continuous and 84 lbf-in (9.4 Nm) peak torque
  • Integrated planetary gearing option 4:1 to 100:1 ratios
  • Up to 1700 rpm base motor speed
  • Multiple standard and custom mounts available


Remote Amplifier Option

Normally the Tritex electronics are mounted directly within the actuator’s housing. Exlar also offers the convenience of the Tritex electronics in a remote enclosure, the TRA500 for applications where physical size or temperature constraints don’t allow the electronics to be mounted on the actuator. The remote Tritex electronics work with Exlar’s TSM and RSM Series actuators.

QUICK DATA
ModelsFrame Size mm (in)Reduction RatioPeak Torque lbf-in (Nm) Max Output RPM
RSM/06060 (2.36)
4:1, 5:1, 10:1, 16:1, 20:1, 25:1, 40:1, 50:1, 100:120 (2.26)
5000
RSM/G09090 (3.54)
4:1, 5:1, 10:1, 16:1, 20:1, 25:1, 40:1, 50:1, 100:1
70 (7.9)
1000
RTM/G06060 (2.36)
4:1, 5:1, 10:1, 16:1, 20:1, 25:1, 40:1, 50:1, 100:1
20 (2.26)
5000
RTM/G09090 (3.54)
4:1, 5:1, 10:1, 16:1, 20:1, 25:1, 40:1, 50:1, 100:1
70 (7.9)
1000

The option descriptions below are meant to be a reference only.

TRITEX I ROTARY Communications & I/OOpen arrow

Communications & I/O

Selectable Input Functions

Enable • Initiate Move (1-4) • Dedicated Position • Jog+ • Jog- • Jog Fast • Home • Extend Switch • Retract Switch • Home Switch • Teach Enable • Teach Move (1-4) • Stop • Hold • Alternate Mode; allows you to switch between 2 operating modes.



Selectable Output Functions

Enabled • Homed • Ready (Enabled and Homed) • Fault • Warning • Fault or Warning Active • Move (1-4) in Progress • Homing • Jogging • Jogging+ • Jogging- • Motion • In Position • At Home Position • At Move (1-4) • Position • Stopped • Holding • In Current Limit • In Current Fold back • Above Rated Current • Maintain a Preset Force • Home
Digital I/O: 8 input, 4 output, 10-24 VDC, optically isolated
Analog Input: 0 to +10 VDC or 4-20mA, 12 bit resolution
Analog Output: 4-20mA, 11 bit resolution
Serial Interface: RS485 Modbus RTU

TRITEX I ROTARY Tritex Series OperationOpen arrow

Tritex Series Operation

The Tritex Series actuators can operate in one of five different motion producing modes. These modes solve an endless variety of applications in industrial automation, medical equipment, fastening and joining, blow molding, injection molding, testing, food processing, and more.

Programmed functions for the application’s motion requirements for linear and rotary motion control applications, product configurations and motion parameters are stored in the Tritex non-volatile memory. An RS/485 series interface allows control, programming and monitoring of all aspects of the motor or actuator as it performs your application.



Operating Modes

  1. Move To A Position (Or Switch)
    The Tritex Series actuators allow you to execute your programmed positions or distances. You may also use a limit switch or other input device as the end condition of a move. This combination of index flexibility provides a simple solution for point-to-point indexing.
  2. Move to a Preset Force or Torque
    The Tritex Series allows you to terminate your move upon the achievement of a programmed torque or force. This is an ideal mode for pressing and clamping applications.
  3. Position Proportional to an Analog Signal
    Ideal for process control solutions, the Tritex Series provides the functionality to position by following an analog input signal. This allows the Tritex Series to deliver precise valve control unachievable by other electric, hydraulic or pneumatic actuators.



Velocity Proportional to An Analog Signal

Tritex actuators offer you the capability to control velocity with an analog signal. This is particularly useful with Tritex rotary actuators offering precise control of the speed of any process or operation.



Force/Torque Proportional to Analog Signal

Perfect for pressing and torqueing applications, you can control torque from an analog input.

Product Specifications

RSM/G060 Performance SpecificationsOpen arrow

RSM060 AND RSG060 PERFORMANCE SPECIFICATIONS

RSM and RSG Models require a TRA500 remote amplifier. For output torque of RSG gearmotors, multiply by ratio and efficiency.



Stator
RPM at 48 VDC*

1 Stack
1B8-50
5000

2 Stack
2B8-34
3400

3 Stack
3B8-25
2500

Ambient Temp

Degrees C

25

40

55

25

40

55

25

40

55

Continuous Torque

lbf-in (Nm)

5.9
(.66)

5.2
(.59)

4.5
(.51)

9.2
(1.0)

8.2
(.93)

7.1
(.80)

11.4
(1.29)

10.2
(1.15)

8.9
(1.01)

Peak Torque

lbf-in (Nm)

9.4 (1.06)

15 (1.69)

20 (2.26)

Power Supply Current Draw at Rated Power (48 V)

Amps

10

10

10

Resolution

0.001 revolution / ratio

Accuracy
(not including backlash)

+/- 0.005 revolution / ratio

*RPM @ 24 VDC = 1/2 of listed value





RSM/G090 Performance SpecificationsOpen arrow

RSM90 AND RSG90 TECHNICIAL SPECIFICATIONS



Stator
RPM at 48 VDC*

1 Stack
1B8-17
1700

2 Stack
2B8-10
1000

3 Stack
3B8-07
700


Ambient Temp Degrees C 25 40 55 25 40 55 25 40 55

Continuous Torque

lbf-in (Nm)

22.1 (2.5)

20.1 (2.3)

17.7 (2.0)

37.2 (4.2)

33.8 (3.8)

30.0 (3.4)

50.9 (5.7)

46.4 (5.2)

41.5 (4.7)

Peak Torque

lbf-in (Nm)

30 (3.4)

50 (5.6)

70 (7.9)

Power Supply Current
Draw at Rated Power (48 V)

Amps

15

12

10

15

12

10

15

12

10

Resolution

0.001 revolution / ratio

Accuracy
(not including backlash)

+/- 0.005 revolution / ratio

*RPM @ 24 VDC = 1/2 of listed value

RTM/G060 Performance SpecificationsOpen arrow

RTM060 AND RTG060 PERFORMANCE SPECIFICATIONS

FOR OUTPUT TORQUE OF RTG GEARMOTORS, MULTIPLY BY RATIO AND EFFICIENCY.



Stator
RPM at 48 VDC*

1 Stack
1B8-50
5000

2 Stack
2B8-34
3400

3 Stack
3B8-25
2500

Continuous Torque

lbf-in (Nm)

4.7 (.53)

7.5 (.85)

10 (1.13)

Peak Torque

lbf-in (Nm)

9.4 (1.06)

15 (1.69)

20 (2.26)

Power Supply Current Draw at Rated Power (48 V)

Amps

10

10

10

Resolution

0.001 revolution / ratio

Accuracy
(not including backlash)

+/- 0.005 revolution / ratio

*RPM @ 24 VDC = 1/2 of listed value




RTM/090 Performance SpecificationsOpen arrow

RTM090 AND RTG090 PERFORMANCE SPECIFICATIONS

FOR OUTPUT TORQUE OF RTG GEARMOTORS, MULTIPLY BY RATIO AND EFFICIENCY.



Stator
RPM at 48 VDC*

1 Stack
1B8-17
1700

2 Stack
2B8-10
1000

3 Stack
3B8-07


Continuous Torque

lbf-in (Nm)

19 (2.1)

29.3 (3.3)

45 (5.0)

Peak Torque

lbf-in (Nm)

30 (3.4)

50 (5.6)

70 (7.9)

Power Supply Current Draw at Rated Power (48 V)

Amps

12

10

10

Resolution

0.001 revolution / ratio

Accuracy (not including backlash)

+/- 0.005 revolution / ratio

*RPM @ 24 VDC = 1/2 of listed value
