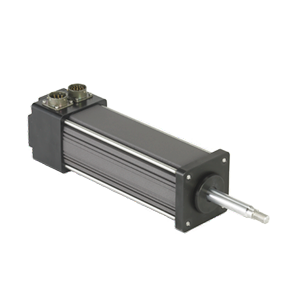

SR Series

Electric Linear Actuator

Industrial - Exlar

The SR Series is an Obsolete Product, No Longer Available. Need a comparable replacement, try our GSX Series actuators!


More Details
Overview Specifications Documentation

Overview

Quick Data

SR Series

In 2007 Exlar introduced the GSX Series Actuators as the successor to the SR Series. The difference between the GSX and the SR Series of actuators is shown below. For the details associated with these differences see the links at the bottom of this page or go to GSX overview.


Excellent Ball Screw Replacement

The SR Series of linear actuators from Exlar provides a cost effective solution, perfect for replacing ball screw actuators. This compact design incorporates Exlar’s patented roller screw technology with an integral brushless servo motor for medium to high performance motion control applications. The SR Series offers a completely integrated actuator, competitively priced with low performance, short-lived ball screw actuators. The SR design provides a smaller package with higher speed and load capacity than ball screws and other traditional rotary to linear conversions. SR Series also offers 5 times the travel life of similarly sized ball screw actuators. Selection of the proper feedback configuration allows SR Series actuators to be powered by nearly every brand of brushless motor amplifier on the market. This flexibility allows SR Series actuators to be incorporated into the highest performance single and multi-axis motion control systems in use today. In applications varying from food and beverage packaging, to multi-axis turning centers to air-craft assembly, the SR Series of actuators show incredible performance and durability.



Features/Characteristics

  • 2.25, 3.3 and 3.9 inch frame sizes
  • 3, 5.9, 10 and 12 inch strokes
  • 0.1, 0.2, 0.4, 0.5 and .75 inch lead roller screws
  • 7 to 75 lbf-in torque motor availability
  • Up to 33 inch per second linear speeds
  • 92 to 1983 lbf thrust capacity depending on motor selection
  • IP54 or IP65 sealing
  • Front flange, rear clevis, trunnion, side, double side or extended tie rods mounting options
  • Encoder feedback with MS style connectors
  • Molded and shielded cables available
  • Black anodized and epoxy-coated aluminum housing
  • Competitive with low cost ball screw actuators
  • 5 times the life of a similar sized ball screw actuator
  • UL Class H insulation system compliant
Quick Data
Models:
SR21, SR31, SR41
Frame Sizes:
2.25, 3.3, 3.9 in (57, 84, 99 mm)
Screw Lead:
0.1, 0.2, 0.4, 0.5, 0.75 in (2.54, 5.08, 10.16, 12.7, 19.05 mm)
Linear Speeds:
up to 33.33 in/s (847 mm/s)
Continuous Thrust Capacity:
up to 3,966  lbf (up to 17,642 N)
Standards/Ratings:
UL Class 180H insulation, IP54S
Print

|

Back to top

Product Specifications

SR21 SR31 SR41
SR21 Performance SpecificationsOpen arrow

SR21 SERIES PERFORMANCE SPECIFICATIONS





Model

Frame
Size
in (mm)

Stroke
in (mm)

Screw
Lead
in (mm)

Force Rating
1 Stack / 2 Stack
lb (N)

Max
Velocity
In/sec
mm (sec)

Approx*
Cont Motor
Torque
1 Stack / 2 Stack
lb-in (Nm)

Maximum
Static
Load
lb (N)

Armature
Inertia
Lb-in-s^2
(Kg-m^2)

Dynamic
Load
Rating
lb (N)

Weight
(approx)
lb (Kg)

SR21-0301

2.25
(57)

3
(76)

0.1
(2.54)

367/578
(1632/2571)

8.33
(211.67)

7.3/11.5
(0.82/1.30)

750
(3336)

0.00101
(0.000116)

1567
(6970)

6.5
(2.9)

SR21-0302

2.25
(57)

3
(76)

0.2
(5.08)

183/289
(814/1286)

16.77
(423.33)

7.3/11.5
(0.82/1.30)

750
(3336)

0.00101
(0.000116)

1219
(5422)

6.5
(2.9)

SR21-0304

2.25
(57)

3
(76)

0.4
(10.16)

92/145
(409/645)

33.33
(846.67)

7.3/11.5
(0.82/1.30)

750
(3336)

0.00101(0.000116)

738
(3283)

6.5
(2.9)

SR21-0601

2.25
(57)

6
(152)

0.1
(2.54)

367/578
(1632/2571)

8.33
(211.67)

7.3/11.5
(0.82/1.30)

750
(3336)

0.00114
(0.000131)

1567
(6970)

7.0
(3.2)

SR21-0602

2.25
(57)

6
(152)

0.2
(5.08)

183/289
(814/1286)

16.67
(423.33)

7.3/11.5
(0.82/1.30)

750
(3336)

0.00114
(0.000131)

1219
(5422)

7.0
(3.2)

SR21-0604

2.25
(57)

6
(152)

0.4
(10.16)

92/145
(409/645)

33.33
(846.67)

7.3/11.5
(0.82/1.30)

750
(3336)

0.00114
(0.000131)

738
(3283)

7.0
(3.2)

SR21-1201

2.25
(57)

12
(304)

0.1
(2.54)

367/578
(1632/2571)

8.33
(211.67)

7.3/11.5
(0.82/1.30)

750
(3336)

0.00143
(0.000165)

1567
(6970)

8.0
(3.6)

SR21-1202

2.25
(57)

12
(304)

0.2
(5.08)

183/289
(814/1286)

16.67
(423.33)

7.3/11.5
(0.82/1.30)

750
(3336)

0.00143
(0.000165)

1219
(5422)

8.0
(3.6)

SR21-1204

2.25
(57)

12
(304)

0.4
(10.16)

92/145
(409/645)

33.33
(846.67)

7.3/11.5
(0.82/1.30)

750
(3336)

0.00143
(0.000165)

738
(3283)

8.0
(3.6)



SR MECHANICAL / ELECTRICAL SPECIFICATIONS



SR21

 Nominal Backlash                     in   (mm)

0.004 (.10)

 Lead Accuracy           in/ft (mm/300 mm)

0.001 (.025)

 Maximum Radial Load                  lb  (N)

20 (90)

 Brake Holding Torque             lb-in (Nm)

19.4 (2.2)

 Environmental Rating: Standard/Optional

IP54


Motor Stator

118

138

168

218

238

268

Trapezoidal Commutation Data

Continuous Motor Torque
Lbf-in

7.3

7.0

6.7

11.4

11.0

10.8
(Nm)

(0.82)

(0.79)

(0.76)

(1.29)

(1.24)

(1.22)

Torque Constant (Kt)
Lbf-in/A

1.9

4.1

7.4

1.9

4.1

7.9
(N-M/A)

(0.22)

(0.46)

(0.84)

(0.22)

(0.46)

(0.89)

Cont. Current Rating, Greased
A

4.2

1.9

1.0

6.6

3.0

1.5

Peak Current Rating
A

8.4

3.9

2.0

13.2

6.0

3.0

RMS Sinusoidal Commutation Data

Continuous Motor Torque
Lbf-in

7.6

7.3

7.0

11.9

11.5

11.3
(Nm)

(0.86)

(0.83)

(0.79)

(1.35)

(1.30)

(1.28)

Torque Constant (Kt)
Lbf-in/A

2.5

5.2

9.5

2.5

5.2

10.2
(N-M/A)

(0.28)

(0.59)

(1.07)

(0.28)

(0.59)

(1.15)

Cont. Current Rating, Greased
A

3.4

1.6

0.8

5.4

2.5

1.2

Peak Current Rating
A

6.9

3.1

1.6

10.8

4.9

2.5

Motor Stator Data

Voltage Constant (Ke)
Vrms / Krpm

16.9

35.6

64.9

16.9

35.6

69.4
VPK / KRPM

23.9

50.3

91.8

23.9

50.3

98.1

Pole Configuration

8

8

8

8

8

8

Resistance
(L-L) Ohms

2.6

12.5

45.8

1.1

5.3

20.7

Inductance
(L-L)  mH

5.1

22.8

75.8

2.5

11.0

41.7

Brake Current @ 24 VDC
A

.33

.33

.33

.33

.33

.33

Brake Engage/Disengage Time
ms

14/28

14/28

14/28

14/28

14/28

14/28

Mech. Time Constant (tm), ms        MIN


6.0

6.5

7.1

2.5

2.7

2.8
MAX

8.5

9.2

10.1

3.6

3.9

4.0

Electrical Time Constant (te)
ms

2.0

1.8

1.7

2.2

2.1

2.0

Damping Constant
lbf-in/krpm


0.55

0.55

0.55

0.55

0.55

0.55
(N-M/KRPM)

(0.06)

(0.06)

(0.06)

(0.06)

(0.06)

(0.06)

Friction Torque
lbf-in


1.00

1.00

1.00

1.00

1.00

1.00
(N-M)

(0.11)

(0.11)

(0.11)

(0.11)

(0.11)

(0.11)

Bus Voltage    Vrms

115

230

460

115

230

460

Speed @ Bus Voltage
RPM

3000

3000

3000

3000

3000

3000

Motor Wire Insulation

Class 180 H

Motor Stator Rating

Class 180 H

Thermal Switch, case temp.     °C

100

Std. Connectors (S Option):          Motor

MS-3112-E16-8P
Feedback

MS-3112-E16-23P
SR31 Performance SpecificationsOpen arrow

SR31 SERIES PERFORMANCE SPECIFICATIONS



Model

Frame Size in (mm)

Stroke in (mm)

Screw Lead in (mm)

Force Rating 1 Stack / 2 Stack lb (N)

Max Velocity in/sec mm (sec)

Approx* Cont Motor Torque 1 Stack / 2 Stack lb-in (Nm)

Maximum Static Load lb (N)

Armature Inertia Lb-in-s^2 (Kg-m^2)

Dynamic
Load Rating lb (N)

Weight (approx) lb (Kg)

SR31-0301

3.3
(84)

3
(75)

0.1
(2.54)

829/1347
(3688/5992)

5
(127)

16.5/26.8
(1.86/3.03)

1620
(7206)

0.00319
(0.000414)

3310
(14724)

9.5
(94.3)

SR31-0302

3.3
(84)

3
(75)

0.2
(5.08)

415/674
(1846/2998)

10
(254)

16.5/26.8
(1.86/3.03)

1620
(7206)

0.00319
(0.000414)


(15880)

9.5
(94.3)

SR31-0305

3.3
(84)

3
(75)

0.5
(12.7)

166/269
(738/1197)

25
(635)

16.5/26.8
(1.86/3.03)

1620
(7206)

0.00319 (0.000414)

3016
(13416)

9.5
(94.3)

SR31-0601

3.3
(84)

5.9
(150)

0.1
(2.54)

829/1347
(3688/5992)

5
(127)

16.5/26.8
(1.86/3.03)

1620
(7206)

0.00361 (0.000416)

3310
(14724)

11.5
(5.2)

SR31-0602

3.3
(84)

5.9
(150)

0.2
(5.08)

415/674
(1846/2998)

10
(254)

16.5/26.8
(1.86/3.03)

1620
(7206)

0.00361 (0.000416)


(15880)

11.5
(5.2)

SR31-0605

3.3
(84)

5.9
(150)

0.5
(12.7)

166/269
(738/1197)

25
(635)

16.5/26.8
(1.86/3.03)

1620
(7206)

0.00361 (0.000416)

3016
(13416)

11.5
(5.2)

SR31-1001

3.3
(84)

10
(254)

0.1
(2.54)

829/1347
(3688/5992)

5
(127)

16.5/26.8
(1.86/3.03)

1620
(7206)

0.00416 (0.000479)

3310
(14724)

19
(8.6)

SR31-1002

3.3
(84)

10
(254)

0.2
(5.08)

415/674
(1846/2998)

10
(254)

16.5/26.8
(1.86/3.03)

1620
(7206)



0.00416 (0.000479)


(15880)

19
(8.6)

SR31-1005

3.3
(84)

10
(254)

0.5

(12.7)

166/269
(738/1197)

25
(635)

16.5/26.8
(1.86/3.03)

1620
(7206)

0.00416 (0.000479)

3016
(13416)

19
(8.6)

SR31-1201

3.3
(84)

12
(305)

0.1
(2.54)

829/1347
(3688/5992)

5
(127)

16.5/26.8
(1.86/3.03)

1620
(7206)

0.00443 (0.000510)

3310
(14724)

22
(10)

SR31-1202

3.3
(84)

12
(305)

0.2
(5.08)

415/674
(1846/2998)

10
(254)

16.5/26.8
(1.86/3.03)

1620
(7206)

0.00443 (0.000510)


(15880)

22
(10)

SR31-1205

3.3
(84)

12
(305)

0.5
(12.7)

166/269
(738/1197)

25
(635)

16.5/26.8
(1.86/3.03)


(7206)

0.00443
(0.000510)

3016
(13416)

22
(10)



SR SERIES MECHANICAL / ELECTRICAL SPECIFICATIONS

Nominal Backlash

 in (mm)

0.004  (.10)

Lead Accuracy

 in/ft (mm/300 mm)

0.001  (25)

Maximum Radial Load

 lb (N)

15  (67)

Environmental Rating: Standard

IP54




SR31

SR41

MOTOR STATOR

118

138

168

218

238

268

118

138

168

218

238

268

Trapezoidal Commutation Motor Data

Continuous Motor Torque           Lbf-in

15.9

15.8

15.0

25.6

25.6

25.5

45.5

45.4

43.5

75.3

75.3

76.1
(Nm)

(1.79)

(1.78)

(1.70)

(2.89)

(2.89)

(2.88)

(5.14)

(5.13)

(4.91)

(8.51)

(8.51)

(8.60)

Torque Constant (Kt)
Lbf-in/A

3.4

6.8

13.6

3.4

6.8

13.6

3.2

6.4

13.1

3.2

6.4

13.1
(N-m/A)

(0.39)

 (0.77)

(1.54)

(0.39)

(0.77)

(1.54)

(0.36)

(0.72)

(1.48)

(0.36)

(0.72)

(1.48)

Continuous Current Rating         Amps

5.2

2.6

1.2

8.4

4.2

2.1

15.9

7.9

3.7

26.3

13.1

6.5

Peak Current Rating                   Amps

10.4

5.2

2.5

16.8

8.4

4.2

31.7

15.8

7.4

52.5

26.3

13.0

RMS Sinusoidal Commutation Motor Data

Continuous Motor Torque
Lbf-in

16.6

16.5

15.7

26.8

26.8

26.7

47.6

47.6

45.5

78.9

78.9

79.7
(Nm)

(1.88)

(1.87)

(1.78)

(3.03)

(3.03)

(3.01)

(5.38)

(5.37)

(5.14)

  (8.91)

(8.91)

(9.00)

Torque Constant (Kt)
Lbf-in/A

4.4

8.7

17.5

4.4

8.7

17.5

4.1

8.2

16.8

4.1

8.2

16.8
N-m/A

(0.49)

(0.99)

(1.98)

(0.49)

(0.99)

(1.98)

(0.46)

 (0.93)

(1.90)

(0.46)

(0.93)

(1.90)

Continuous Current Rating         Amps

4.2

2.1

1.0

6.9

3.4

1.7

12.9

6.5

3.0

21.4

10.7

5.3

Peak Current Rating                   Amps

8.5

4.2

2.0

13.7

6.8

3.4

25.9

12.9

6.0

42.9

21.4

10.6

Motor Stator Data

Voltage Constant (Ke)
Vrms / Krpm

29.9

59.7

119.5

29.9

59.7

119.5

28.1

56.1

114.8

28.1

56.1

114.8
Vpk / Krpm

42.2

84.5

168.9

42.2

84.5

168.9

39.7

79.4

162.4

39.7

79.4

162.4

Pole Configuration

8

8

8

8

8

8

8

8

8

8

8

8

Resistance (L-L)
Ohms

2.8

11.2

49.6

1.1

4.5

18.0

0.42

1.7

7.8

0.18

0.72

3.0

Inductance (L-L)
mH

7.7

30.7

123.0

3.7

14.7

5837

3.0

11.9

49.8

1.4

5.8

24.2

Mech. Time Constant (tm), ms
min

6.5

6.5

7.2

2.6

2.6

2.6

5.3

5.3

5.8

2.3

2.3

2.2
max

10.8

10.9

12.0

4.3

4.3

4. 4

7.7

7.7

8.4

3.3

3.3

3.2

Electrical Time Constant (te)
ms

2.8

2.7

2.5

3.3

3.3

3.3

7.0

7.0

6.4

8.0

8.0

8.2

Damping Constant
lbf-in/krpm

1.23

1.23

1.23

1.23

1.23

1.23

3.25

3.25

3.25

3.25

3.25

3.25
(N-m/Krpm)

(0.14)

(0.14)

(0.14)

(0.14)

(0.14)

(0.14)

(0.37)

(0.37)

(0.37)

(0.37)

(0.37)

(0.37)

Friction Torque
lbf-in

2.00

2.00

2.00

2.00

2.00

2.00

4.50

4.50

4.50

4.50

4.50

4.50
(Nm)

(0.23)

(0.23)

(0.23)

(0.23)

(0.23)

(0.23)

(0.51)

(0.51)

(0.51)

(0.51)

(0.51)

(0.51)

Bus Voltage
Vrms

115

230

460

115

230

460

115

230

460

115

230

460

Speed @ Bus Voltage
RPM

3000

3000

3000

3000

3000

3000

3000

3000

3000

3000

3000

3000

Thermal Switch, case temp.
°C

100

100

100

100

100

100

100

100

100

100

100

100

Std. Connectors ("S" Option): Motor

MS-3112-E16-8P

MS-3102-E20-15P

Feedback

MS-3112-E16-23P

Motor Wire Insulation

Class 180 H

Motor Stator Rating

Class 180 H


SR41 Performance SpecificationsOpen arrow

SR41 SERIES PERFORMANCE SPECIFICATIONS



Model

Frame Size in (mm)

Stroke in (mm)

Screw Lead in (mm)

Force Rating 1 Stack / 2 Stack lb (N)

Max Velocity in/sec mm (sec)

Approx* Cont Motor Torque 1 Stack / 2 Stack lb-in (Nm)

Maximum Static Load lb (N)

Armature Inertia lb-in-s^2 (Kg-m^2)

Dynamic
Load Rating lb (N)

Weight (approx) lb (Kg)

SR41-0601

3.9
(99)

6 (152)

0.1(2.54)

2393/3966 (10645/17642)

 5 (127)

47.6/78.9 (5.38/8.91)

3240 (14412)

0.0152 (0.001751)

4736 (21067)

20 (9.1)

SR41-0602

3.9
(99)

6 (152)

0.2 (5.08)

1196/1983 (5320/8821)

10 (254)

47.6/78.9 (5.38/8.91)

3240 (14412)

0.0152 (0.001751)

4890 (21751)

20 (9.1)

SR41-0605

3.9 (99)

6 (152)

0.5 (12.7)

479/793 (2131/3527)

25 (635)

47.6/78.9 (5.38/8.91)

3240 (14412)

0.0152 (0.001751)

4218 (18763)

20 (9.1)

SR41-0608

3.9 (99)

6 (152)

0.75 (19.05)

319/529 (1419/2353)

37.5 (953)

47.6/78.9 (5.38/8.91)

3240 (14412)

0.0152 (0.001751)

3328 (14804)

20 (9.1)

SR41-1201

3.9 (99)

12 (305)

0.1 (2.54)

2393/3966 (10645/17642)

5 (127)

47.6/78.9 (5.38/8.91)

3240 (14412)

0.0186 (0.002143)

4736 (21067)

32 (14.5)

SR41-1202

3.9 (99)

12 (305)

0.2 (5.08)

1196/1983 (5320/8821)

10 (254)

47.6/78.9 (5.38/8.91)

3240 (14412)

0.0186 (0.002143)

4890 (21751)

32 (14.5)

SR41-1205

3.9 (99)

12 (305)

0.5 (12.7)

479/793 (2131/3527)

25 (635)

47.6/78.9 (5.38/8.91)

3240 (14412)

0.0186 (0.002143)

4218 (18763)

32 (14.5)

SR41-1208

3.9 (99)

12 (305)

0.75 (19.05)

319/529 (1419/2353)

37.5 (953)

47.6/78.9 (5.38/8.91)

3240 (14412)

0.0186 (0.002143)

3328 (14804)

32 (14.5)



SR SERIES MECHANICAL / ELECTRICAL SPECIFICATIONS

Nominal Backlash

 in (mm)

0.004  (.10)

Lead Accuracy

 in/ft (mm/30 mm)

0.001  (25)

Maximum Radial Load

 lb (N)

15  (67)

Environmental Rating: Standard

IP54


SR31

SR41

MOTOR STATOR

118

138

168

218

238

268

118

138

168

218

238

268

Trapezoidal Commutation Motor Data

Continuous Motor Torque
Lbf-in

15.9

15.8

15.0

25.6

25.6

25.5

45.5

45.4

43.5

75.3

75.3

76.1
(Nm)

(1.79)

(1.78)

(1.70)

(2.89)

(2.89)

(2.88)

(5.14)

(5.13)

(4.91)

(8.51)

(8.51)

(8.60)

Torque Constant (Kt)
Lbf-in/A

3.4

6.8

13.6

3.4

6.8

13.6

3.2

6.4

13.1

3.2

6.4

13.1
(N-m/A)

(0.39)

(0.77)

(1.54)

(0.39)

(0.77)

(1.54)

(0.36)

(0.72)

(1.48)

(0.36)

(0.72)

(1.48)

Continuous Current Rating
Amps

5.2

2.6

1.2

8.4

4.2

2.1

15.9

7.9

3.7

26.3

13.1

6.5

Peak Current Rating
Amps

10.4

5.2

2.5

16.8

8.4

4.2

31.7

15.8

7.4

52.5

26.3

13.0

RMS Sinusoidal Commutation Motor Data

Continuous Motor Torque
Lbf-in

16.6

16.5

15.7

26.8

26.8

26.7

47.6

47.6

45.5

78.9

78.9

79.7
(Nm)

(1.88)

(1.87)

(1.78)

(3.03)

(3.03)

(3.01)

(5.38)

(5.37)

(5.14)

  (8.91)

(8.91)

(9.00)

Torque Constant (Kt)
Lbf-in/A

4.4

8.7

17.5

4.4

8.7

17.5

4.1

8.2

16.8

4.1

8.2

16.8
N-m/A

(0.49)

(0.99)

(1.98)

(0.49)

(0.99)

(1.98)

(0.46)

 (0.93)

(1.90)

(0.46)

(0.93)

(1.90)

Continuous Current Rating
Amps

4.2

2.1

1.0

6.9

3.4

1.7

12.9

6.5

3.0

21.4

10.7

5.3

Peak Current Rating Amps

8.5

4.2

2.0

13.7

6.8

3.4

25.9

12.9

6.0

42.9

21.4

10.6

Motor Stator Data

Voltage Constant (Ke)
Vrms / Krpm

29.9

59.7

119.5

29.9

59.7

119.5

28.1

56.1

114.8

28.1

56.1

114.8
Vpk / Krpm

42.2

84.5

168.9

42.2

84.5

168.9

39.7

79.4

162.4

39.7

79.4

162.4

Pole Configuration

8

8

8

8

8

8

8

8

8

8

8

8

Resistance (L-L)
Ohms

2.8

11.2

49.6

1.1

4.5

18.0

0.42

1.7

7.8

0.18

0.72

3.0

Inductance (L-L)
mH

7.7

30.7

123.0

3.7

14.7

5837

3.0

11.9

49.8

1.4

5.8

24.2

Mech. Time Constant (tm), ms
min

6.5

6.5

7.2

2.6

2.6

2.6

5.3

5.3

5.8

2.3

2.3

2.2
max

10.8

10.9

12.0

4.3

4.3

4. 4

7.7

7.7

8.4

3.3

3.3

3.2

Electrical Time Constant (te)
ms

2.8

2.7

2.5

3.3

3.3

3.3

7.0

7.0

6.4

8.0

8.0

8.2

Damping Constant
lbf-in/krpm


1.23

1.23

1.23

1.23

1.23

1.23

3.25

3.25

3.25

3.25

3.25

3.25
(N-M/Krpm

(0.14)

(0.14)

(0.14)

(0.14)

(0.14)

(0.14)

(0.37)

(0.37)

(0.37)

(0.37)

(0.37)

(0.37)

Friction Torque
LBF-IN

2.00

2.00

2.00

2.00

2.00

2.00

4.50

4.50

4.50

4.50

4.50

4.50
(Nm)

(0.23)

(0.23)

(0.23)

(0.23)

(0.23)

(0.23)

(0.51)

(0.51)

(0.51)

(0.51)

(0.51)

(0.51)

Bus Voltage
Vrms

115

230

460

115

230

460

115

230

460

115

230

460

Speed @ Bus Voltage
RPM

3000

3000

3000

3000

3000

3000

3000

3000

3000

3000

3000

3000

Thermal Switch, case temp.
°C

100

100

100

100

100

100

100

100

100

100

100

100

Std. Connectors ("S" Option): Motor

MS-3112-E16-8P

MS-3102-E20-15P

Feedback

MS-3112-E16-23P

Motor Wire Insulation

Class 180 H

Motor Stator Rating

Class 180 H


Printable view

SR Series Resources

search
x
Content Type
Industrial - Exlar, Manuals

SR Series Installation and Service Manual
Hide Resources

This site uses cookies to improve our service, you can find out more here - for the best web experience please accept cookies

x
