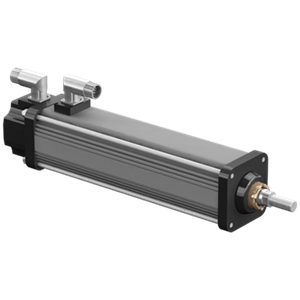

GS Series Linear Actuator
previous
next

GS Series Linear Actuator

Electric Linear Actuator

Industrial - Exlar

The GS Series is an Obsolete Product, No Longer Available. Need a comparable replacement, try our GSX or GTX Series actuators!

More Details

Overview

GS Series Linear Actuator

For applications not already converted to Exlar’s GSX Series, the GS Series offers 2, 3, 4, 5, or 7 inch frame sizes to represent a wide range or force, speed, stroke and mounting configurations. Exlar GS Series linear actuators use a specially designed roller screw mechanism for converting electric motor power into linear motion within the actuator. Planetary rollers assembled around the actuator’s extending rod follow threads which are precisely machined on the inside surface of the actuator’s hollow armature. Linear motion is produced in precise synchronization with the armature rotation. Because this roller screw mechanism has an inherently larger cumulative contact surface, these actuators have a much longer working life, and can handle heavier loads at higher speeds than is possible from a similarly sized unit built around a ball screw system.



The Actuator & Motor, All in One Compact Unit

With other actuator technologies, you are usually responsible for engineering the completed linear motion system. This usually includes purchasing the motor, gear reducer, timing belt, mounting hardware, flexible couplings, etc. separately. Then they all must be assembled to perform properly in a given application. Once put together, the system usually must be ‘tweaked’ before it can be released to production. GS Series actuators eliminate all this systems engineering. GS units are a single, fully integrated component package, much smaller than traditional rotary-to-linear conversion mechanisms.



Designed for State-of-the-Art Electronic Controls

Their brushless servo design means GS units can be used in advanced closed loop servo systems whenever electronic velocity and positioning control is required. Position feedback can be delivered in a number of different forms. These include resolvers, encoders or internally mounted linear position feedback sensors. This flexibility allows GS actuators to work with nearly any brushless servo amplifier.



Sealed for Long Life with Minimum Maintenance

GS Series actuators have strong advantages whenever outside contaminants are an issue. In most rotary-to-linear devices, critical mechanisms are exposed to the environment. Thus, they must be frequently inspected, cleaned and lubricated. In contrast, all converting components in any Exlar GS unit are mounted within the sealed motor housing. With a simple bushing and seal arrangement on the smooth extending rod, abrasive particles or other contaminants are prevented from reaching the actuator’s critical mechanisms. This assures trouble-free operation even in the most severe environments. As a totally sealed device, lubrication requirements are minimal. GS actuators can be lubricated with either grease or recirculated oil. Grease lubricated units will run up to 10,000 hours without re-greasing. Recirculated oil systems eliminate this type of maintenance altogether. (A GS actuator with a properly operating recirculating oil system will operate indefinitely without any other lubrication requirements.)

Quick Data
Models:
GS20, GS30, GS40, GS45. GS60
Frame Sizes:
2.25, 3.125, 3.9, 5.0, 7.0 in (57, 79, 99, 127, 178 mm)
Stroke Lengths:
3, 5.5, 6, 8, 10, 12, 14, 18 in (76, 140, 152, 203, 254, 305, 356, 457 mm)
Maximum Speed:up to 33.33 in/s (846.67 mm/s)
Maximum Force:up to 25,000 lbf-in (111,200 N)

Product Specifications

GS20 Performance SpecificationsOpen arrow

GS20 PERFORMANCE SPECIFICATIONS

Model

Frame
Size
in (mm)

Sroke
in (mm)

Screw
Lead
in (mm)

Force Rating
1 / 2 / 3 Stack
lb (N)

Max
Velocity
in/sec
(mm/sec)

Approx* Cont Motor Torque
1 / 2 / 3 Stack
lb-in (Nm)

Maximum
Static Load
lb (N)

Armature
Inertia
lb-in-S2
(KG-M2)

Dynamic Load
Rating
lb (N)

Weight
(Approx)
lb (KG)

GS20-0301

2.25
(57)

3
(76)

0.1
(2.54)

367/578/NA
(1632/2571/NA)

8.33
(211.67)

7.3/11.5/NA
(0.82/1.30/NA)

1000
(4448)

0.00101
(0.000114)

2075
(9230)

5.5
(2.5)

GS20-0302

2.25
(57)

3
(76)

0.2
(5.08)

183/289/NA
(814/1286/NA)

16.77
(423.33)

7.3/11.5/NA
(0.82/1.30/NA)

1000
(4448)

0.00101
(0.000114)

1540
(6850)

5.5
(2.5)

GS20-0304

2.25
(57)

3
(76)

0.4
(10.16)

92/145/NA
(409/645/NA)

33.33
(846.67)

7.3/11.5/NA
(0.82/1.30/NA)

1000
(4448)

0.00101
(0.000114)

1230
(5471)

5.5
(2.5)

GS20-0601

2.25
(57)

6
(152)

0.1
(2.54)

367/578/NA
(1632/2571/NA)

8.33
(211.67)

7.3/11.5/NA
(0.82/1.30/NA)

1000
(4448)

0.00114
(0.000129)

2075
(9230)

9.5
(4.3)

GS20-0602

2.25
(57)

6
(152)

0.2
(5.08)

183/289/385
(814/1286/1713)

16.67
(423.33)

7.3/11.5/15.3
(0.82/1.30/1.73)

1000
(4448)

0.00114
(0.000129)

1540
(6850)

9.5
(4.3)

GS20-0604

2.25
(57)

6
(152)

0.4
(10.16)

92/145/192
(409/645/854)

33.33
(846.67)

7.3/11.5/15.3
(0.82/1.30/1.73)

1000
(4448)

0.00114
(0.000129)

1230
(5471)

9.5
(4.3)

GS20-1201

2.25
(57)

12
(304)

0.1
(2.54)

367/578/NA
(1632/2571/NA)

8.33
(211.67)

7.3/11.5/NA
(0.82/1.30/NA)

1000
(4448)

0.00143
(0.000162)

2075
(9230)

17.5
(8)

GS20-1202

2.25
(57)

12
(304)

0.2
(5.08)

183/289/385
(814/1286/1713)

16.67
(423.33)

7.3/11.5/15.3
(0.82/1.30/1.73)

1000
(4448)

0.00143
(0.000162)

1540
(6850)

17.5
(8)

GS20-1204

2.25
(57)

12
(304)

0.4
(10.16)

92/145/192
(409/645/854)

33.33
(846.67

7.3/11.5/15.3
(0.82/1.30/1.73)

1000
(4448)

0.00143
(0.000162)

1230
(5471)

17.5
(8)

GS30 Performance SpecificationsOpen arrow

GS30 PERFORMANCE SPECIFICATIONS



Model

Frame Size
In (mm)

Stroke
In (mm)

Screw Lead
 In (mm)

Force Rating
1 / 2 / 3 Stack
lb (N



Max
Velocity
In/sec
(mm/sec)

Approx*
Cont Motor
Torque
1 / 2 / 3 Stack
Lb-in (Nm)

Maximum
Static
Load
Lb (N)

Armature
Inertia
Lb-in-s2
(Kg-m2)

Dynamic Load Rating
Lb (N)

Weight
(approx)
 lb (Kg)

GS30-0302

3.125
(79)

3
(76)

0.2
(5.08)

415/674/NA
(1846/2998/NA)

10
(254)

16.5/26.8/NA
(1.86/3.03/NA)

2000
(8896)

0.00319
(0.00036)

5800
(25798)

9.5
(4.3)

GS30-0305

3.125
(79)

3
(76)

0.5
(12.7)

166/269/NA
(738/1197/NA)

25
(635)

16.5/26.8/NA
(1.86/3.03/NA)

2000
(8896)

0.00319
(0.00036)

4900
(21795)

9.5
(4.3)

GS30-0602

3.125
(79)

5.5
(140)

0.2
(5.08)

415/674/905
(1846/2998/4026)

10
(254)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00361
(0.000408)

5800
(25798)

11.5
(5.2)

GS30-0605

3.125
(79)

5.5
(140)

0.5
(12.7)

166/269/362
(738/1197/1610)

25
(635)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00361
(0.000408)

4900
(21795)

11.5
(5.2)

GS30-1002

3.125
(79)

10
(254)

0.2
(5.08)

415/674/905
(1846/2998/4026)

10
(254)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00416
(0.00047)

5800
(25798)

19
(8.6)

GS30-1005

3.125
(79)

10
(254)

0.5
(12.7)

166/269/362
(738/1197/1610)

25
(635)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00416
(0.00047)

4900
(21795)

19
(8.6)

GS30-1402

3.125
(79)

14
(356)

0.2
(5.08)

415/674/905
(1846/2998/4026)

10
(254)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00473
(0.000534)

5800
(25798)

22
(10)

GS30-1405

3.125
(79)

14
(356)

0.5
(12.7)

166/269/362
(738/1197/1610)

25
(635)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00473
(0.000534)

4900
(21795)

22
(10)

GS30-1802

3.125
(79)

18
(457)

0.2
(5.08)

415/674/905
(1846/2998/4026)

10
(254)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00533
(0.000602)

5800
(25798)

25
(11.3)

GS30-1805

3.125
(79)

18
(457)

0.5
(12.7)

166/269/362
(738/1197/1610)

25
(635)

16.5/26.8/36
(1.86/3.03/4.07)

2000
(8896)

0.00533
(0.000602)

4900
(21795)

25
(11.3)

GS40 Performance SpecificationsOpen arrow

GS40 PERFORMANCE SPECIFICATIONS



Model

Frame
Size
In (mm)

Stroke
In (mm)

Screw
Lead
In (mm)

Force
Rating
1 / 2 / 3 Stack
lb (N)

Max
Velocity
In/sec
(mm/sec)

Approx*
Cont Motor
Torque
1 / 2 / 3 Stack
lb-in (Nm)

Maximum
Static Load
lb (N)

Armature
Inertia
lb-in-s2
(Kg-m2)

Dynamic Load
Rating
lb (N)

Weight
(approx)
lb (Kg)

GS40-0602

3.9
(99)

6
(152)

0.2
(5.08)

1196/1983/NA
(5320/8821/NA)

10
(254)

47.6/78.9/NA
(5.38/8.91/NA)

5000
(22400)

0.0152
(0.001718)

8300
(36920)

20
(9.1)

GS40-0605

3.9
(99)

6
(152)

0.5
(12.7)

479/793/NA
(2131/3527/NA

25
(635)

47.6/78.9/NA
(5.38/8.91/NA)

5000
(22400)

0.0152
(0.001718)

7030
(31271)

20
(9.1)

GS40-0802

3.9
(99)

8
(203)

0.2
(5.08)

1196/1983/2692
(5320/8821/11975)

10
(254)

47.6/78.9/107.1
(5.38/8.91/12.1)

5000
(22400)

0.0163
(0.001845)

8300
(36920)

24
(10.9)

GS40-0805

3.9
(99)

8
(203)

0.5
(12.7)

479/793/1077
(2131/3527/4791

25
(635)

47.6/78.9/107.1
(5.38/8.91/12.1)

5000
(22400)

0.0163
(0.001845)

7030
(31271)

24
(10.9)

GS40-1202

3.9
(99)

12
(305)

0.2
(5.08)

1196/1983/2692
(5320/8821/11975)

10
(254)

47.6/78.9/107.1
(5.38/8.91/12.1)

5000
(22400)

0.0186
(0.002101)

8300
(36920)

32
(14.5)

GS40-1205

3.9
(99)

12
(305)

0.5
(12.7)

479/793/1077
(2131/3527/4791

25
(635)

47.6/78.9/107.1
(5.38/8.91/12.1)

5000
(22400)

0.0186
(0.002101)

7030
(31271)

32
(14.5)

GS40-1802

3.9
(99)

18
(457)

0.2
(5.08)

1196/1983/2692
(5320/8821/11975)

10
(254)

47.6/78.9/107.1
(5.38/8.91/12.1)

5000
(22400)

0.0220
(0.002483)

8300
(36920)

44
(20)

GS40-1805

3.9
(99)

18
(457)

0.5
(12.7)

479/793/1077
(2131/3527/4791

25
(635)

47.6/78.9/107.1
(5.38/8.91/12.1)

5000
(22400)

0.0220
(0.002483)

7030
(31271)

44
(20)

GS45 Performance SpecificationsOpen arrow

GS45 PERFORMANCE SPECIFICATIONS

Model

Frame Size in
(mm)

Stroke
in (mm)

Screw Lead
in (mm)

Force* Rating
lb (N)
1/2 stack

Max Velocity
in/sec
(mm/sec)

Cont Motor Torque
lb-in (N-m)
1/2 Stack

Max Static Load lb
(N)

Armature Inertia
lb-in-s2
(Kg-m2)

Dynamic Load Rating
lb (N)

Weight   (approx.)
lb (Kg)

GS45-0601

5.0
(127)

6
(152)

0.1
(2.54)

3760/5894
(16725/26218)

4
(101.6)

74/116
(8.36/13.1)

10000
(44800)

0.0299
(0.003378)

12674
(56377)

31.5
(14.3)

GS45-0602

5.0
(127)

6
(152)

0.2
(5.08)

1860/2916
(8274/12971)

8
(203)

74/116
(8.36/13.1)

10000
(44800)

0.0299
(0.003378)

12500
(55600)

31.5
(14.3)

GS45-0605

5.0
(127)

6
(152)

0.5
(12.7)

774/1213
(3309/5396)

20
(508)

74/116
(8.36/13.1)

10000
(44800)

0.0299
(0.003378)

10600
(47150)

31.5
(14.3)

GS45-0610

5.0
(127)

6
(152)

1.0
(25.4)

372/583
(1655/2593)

40
(1016)

74/116
(8.36/13.1)

10000
(44800)

0.0299
(0.003378)

9500
(42260)

31.5
(14.3)

GS45-1001

5.0
(127)

10
(254)

0.1
(2.54)

3760/5894
(16725/26218)

4
(101.6)

74/116
(8.36/13.1)

10000
(44800)

0.0353
(0.003988)

12674
(56377)

36.5
(16.5)

GS45-1002

5.0
(127)

10
(254)

0.2
(5.08)

1860/2916
(8274/12971)

8
(203)

74/116
(8.36/13.1)

10000
(44800)

0.0353
(0.003988)

12500
(55600)

36.5
(16.5)

GS45-1005

5.0
(127)

10
(254)

0.5
(12.7)

774/1213
(3309/5396)

20
(508)

74/116
(8.36/13.1)

10000
(44800)

0.0353
(0.003988)

10600
(47150)

36.5
(16.5)

GS45-1010

5.0
(127)

10
(254)

1.0
(25.4)

372/583
(1655/2593)

40
(1016)

74/116
(8.36/13.1)

10000
(44800)

0.0353
(0.003988)

9500
(42260)

36.5
(16.5)

GS45-1402

5.0
(127)

14
(356)

0.2
(5.08)

1860/2916
(8274/12971)

8
(203)

74/116
(8.36/13.1)

10000
(44800)

0.0408
(0.004610)

12500
(55600)

41
(18.7)

GS45-1405

5.0
(127)

14
(356)

0.5
(12.7)

774/1213
(3309/5396)

20
(508)

74/116
(8.36/13.1)

10000
(44800)

0.0408
(0.004610)

10600
(47150)

41
(18.7)

GS45-1802

5.0
(127)

18
(457)

0.2
(5.08)

1860/2916
(8274/12971)

8
(203)

74/116
(8.36/13.1)

10000
(44800)

0.0468
(0.005288)

12500
(55600)

47
(21.4)

GS45-1805

5.0
(127)

18
(457)

0.5
(12.7)

774/1213
(3309/5396)

20
(508)

74/116
(8.36/13.1)

10000
(44800)

0.0468
(0.005288)

10600
(47150)

47
(21.4)

GS60 Performance SpecificationsOpen arrow

GS60 PERFORMANCE SPECIFICATIONS

Model

Frame Size
in (mm)

Stroke
in (mm)

Screw Lead
in (mm)

Force* Rating
lb (N)

Max
Velocity
in/sec
(mm/sec)

Cont
Motor Torque
lb-in (Nm)

Max Static Load
lb (N)

Armature
Inertia
lb-in-s2
(Kg-m2)

Dynamic Load
Rating
lb (N)

Weight (approx.)
lb (Kg)

GS60-1003

7.0
(178)

10
(254)

0.25
(6.35)

7942
(35328)

10
(254)

395
(44.6)

25000
(111200)

0.1943
(0.021959)

25300
(112535)

101
(46)

GS60-1005

7.0
(178)

10
(254)

0.5
(12.7)

3971
(17664)

20
(508)

395
(44.6)

25000
(111200)

0.1943
(0.021959)

22800
(101415)

101
(46)

GS60-1010

7.0
(178)

10
(254)

1.0
(25.4)

1985
(8830)

40
(1018)

395
(44.6)

25000
(111200)

0.1943
(0.021959)

21200
(94298)

101
(46)

Resources For GS Series Actuators

Content Type
Hide Resources

This site uses cookies to improve our service, you can find out more here - for the best web experience please accept cookies

x
