EXP-24 Electronic Positioner

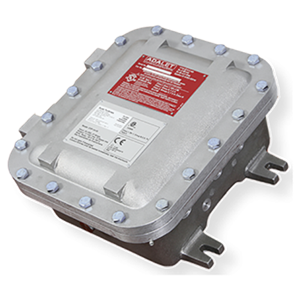

The EXP-24 electronic positioner is designed to be used with Exlar® EL100 actuators in high temperature, hazardous locations. Also it is well suited to drive most 3-phase linear actuators and rotary motors. This accurate and adaptable positioner features a fully capable 24 VDC motion controller and brushless servo motor amplifier. Its rugged design and protective housing conform to CSA and the EU ATEX Directive 2014/34/EU for explosion-proof applications.

Engineered for Hazardous Environments

Capable of powering most resolver feedback brushless motors, the EXP-24 is one of the only servo drive solutions on the market that is engineered for use in hazardous environments. This fully electronic positioner is ideal for process control applications, such as engine test stands, fuel skids, oil platforms, paint booths, and many other applications in harsh or potentially explosive atmospheres. Additionally it has the ability to accurately position valves and dampers by following an analog input signal. For consistency, accuracy, and durability, the EXP-24 is ready to perform. Read about about certification for hazardous locations.


Other Advantages

  • Complies with CSA Class I Division 1 classification systems
  • Conforms with ATEX Directive (LCIE 09 ATEX 3057 X)
  • User friendly configuration software for fast, accurate, dependable positioning
  • Features convenient conduit entry ports and easily accessible internal terminal strips
  • Drives most 3-phase linear actuators and rotary motors
  • Multiple motion modes available for a wide range of applications
  • IP66 environmental sealing standard
Quick data
Input Voltage:18 to 32 Vdc
Input Current, DC:
30 A peak, 25 A continuous
Output Current, 3Ø:
30 A (21 ARMS) peak, 25 A (18 ARMS) continuous
Operating temperature range of -29° to 82° C
Standards/Ratings:IP66 standard, NEMA Type 4; CSA Class I, Division 1, Groups B, C, D, and T5; EU Compliance 2014/34/EU for use in potentially explosive atmospheres (ATEX) Ex d II B T5

Some options are not available with every configuration. For options or specials not listed above or for extended temperature operation, please consult Exlar Applications Engineering.

EXP-24 Electronic Positioner Standard FeaturesOpen arrow

  • CSA Class 1, Division 1 compliant
  • ATEX Directive (LCIE 09 ATEX 3057 X) compliant
  • Intuitive configuration software
  • Convenient conduit entry ports
  • Easily accessible internal terminal strips
  • IP66, NEMA Type 4 enclosure

Product Specifications

Performance SpecificationsOpen arrow
Input Voltage 18 to 32 VDC
Input Current, DC 30 A Peak, 25 A Continuous
Output Current, 3A 30 A (21 ARMS) Peak, 25 A (18 ARMS) Continuous
Digital Inputs 2 - Isolated, 18 to 32 VDC
Digital Outputs 2 - Isolated, 18 to 32 VDC, 250mA Continuous
Analog Input 1 - Non-isolated, 4 to 20maA, 500 Ω Input Impedance
Analog Output 2 - Isolated, 4 to 20mA, 200 Ω to 500 Ω Driving Capability
Serial Interface Isolated RS-485, Modbus Protocol, Max. Baud Rate 38.4k
Commutation Sinusoidal, Space Vector PWM, 10 kHz
Position Feedback Resolver
Environmental -29 to 82°C Operating Temperature Range
Enclosure IP66, NEMA Type 4
N.A. Certifications CSA Class I Division 1 Groups B, C, D, T5
E.U. Compliance 94/9/EC Potentially Explosive Atmospheres (ATEX) Ex d II B, T5
EMC Immunity: EN 61000-6-2: 2005, Emission: EN 61000-6-4: 2007
Approx. Weight 33 lbs (15 kg)
